A pocket door can reclaim floor space and create a clean, uninterrupted wall, but fitting one into an existing home is more than swapping a hinged door for a sliding panel. The door needs a clear cavity inside the wall, a properly supported track, and enough room for the frame. Before any drywall comes down, you also need to know what is already inside that wall.

The key question isn’t simply whether you like the look. It’s whether your wall can accommodate the moving door without compromising structure, utilities, or code requirements. Here’s what pocket door installation involves, what to check first, and when another door style is the more sensible renovation choice.

Why a pocket door retrofit needs more planning than a new installation

In new construction, a wall can be framed around the pocket system. In an existing home, the wall already has a job: it may carry loads, brace the structure, or conceal electrical, plumbing, and HVAC services. Making room for the door can mean opening the wall, moving services, and rebuilding part of the framing.

A conventional pocket door slides into a cavity roughly as long as the door itself. That means the wall needs more than just the doorway: it needs an uninterrupted section beside the opening where the slab can retract. The cavity also needs enough depth for the door and frame, with clearance so the door does not rub.

Practical first check: look at both sides of the wall and measure the available wall run. A single pocket door commonly needs close to twice the door’s width across the rough opening and pocket area, though the exact requirements depend on the frame system. A closet, corner, adjacent doorway, or built-in cabinet may leave too little uninterrupted space.

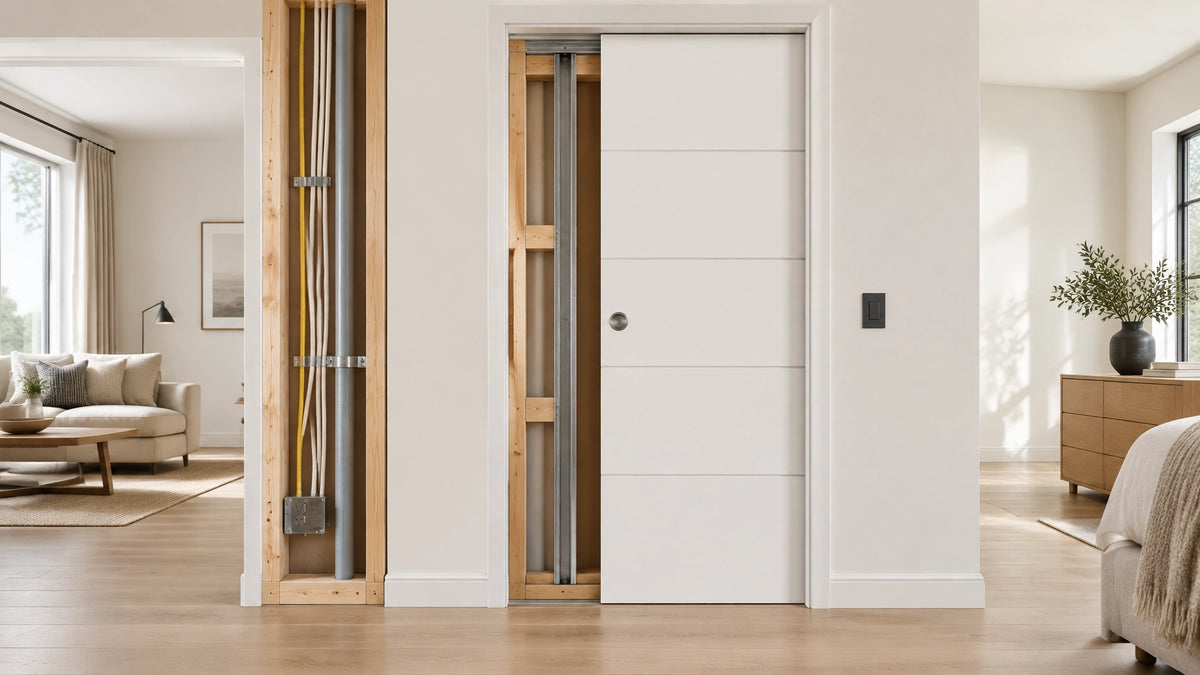

What might be inside the pocket-door cavity?

The moving door needs a clear path. A stud bay that looks empty from the room side may contain services that make the retrofit difficult, or uneconomical.

• Electrical wiring and boxes: Cables, switches, outlets, and junction boxes may need to move outside the pocket. A box cannot simply be buried behind a finished wall, and wiring must be routed and protected according to applicable electrical requirements.
• Plumbing: Water supply lines, drainpipes, vents, shutoff valves, and cleanouts can conflict with the door cavity. Drain and vent pipes are especially challenging to reroute because their size, slope, and access requirements matter.
• Ductwork and mechanical lines: HVAC ducts, refrigerant lines, or other mechanical services may occupy more space than the available wall depth allows. They should not be cut, flattened, or relocated without an appropriate plan.
• Structure and bracing: Studs, headers, posts, and bracing may be supporting or stabilizing the home. Their purpose needs to be understood before anything is removed.

A stud finder or wall scanner can offer clues, but it does not replace a proper investigation. If the wall is structural, fire-rated, or full of services, have a qualified professional assess it before demolition. The cost of an early inspection is often far lower than repairing a damaged line or correcting an unsafe alteration.

Is the wall load-bearing or otherwise restricted?

This is one of the most important feasibility questions. A load-bearing wall supports part of the structure above it. Removing or altering its framing without a properly designed load path can cause serious damage. A larger header or other structural changes may be required, and the right solution depends on the building, not a generic door-installation diagram.

Other walls may have constraints too. A wall can provide lateral bracing, separate a garage from living space, or form part of a fire-resistance-rated assembly. In those cases, simply inserting a standard pocket frame may not preserve the wall’s required function.

Don’t assume a wall is non-structural because it looks ordinary. Check with a licensed contractor or structural professional, and confirm local permit and inspection requirements before work begins. Electrical, plumbing, and mechanical changes may also need permits or inspections.

Rough-opening math: why the door size is only the starting point

The rough opening is the framed space that receives the pocket-door frame and track before trim and finish work. Its required dimensions vary by manufacturer and system. The door slab’s width and height, thickness, weight, finished floor level, and wall thickness all affect the fit.

As a general illustration, some common kits for a 30-by-80-inch slab specify a rough opening around 61 inches wide by 84½ inches high. A 36-by-80-inch slab may require a width around 73 inches with a similar height. These are examples, not universal specifications. Another system may call for different dimensions.

Before framing, confirm the following with the exact frame instructions:

• Rough-opening width and height: Use the manufacturer’s measurements, not a rule of thumb copied from another kit.
• Wall thickness: The frame must match the finished wall assembly, including drywall or other wallboard on each side. A system for a standard 2×4 wall may not suit a 2×6 wall.
• Door slab dimensions and weight: Confirm the system supports the slab’s actual thickness and weight.
• Floor clearance: Account for the finished flooring and any transition strips so the slab moves freely.
• Required wall run: Make sure there is enough uninterrupted length for both the opening and the pocket.

If you’re choosing a door before the framing kit, coordinate the slab and hardware early. Browse pocket door options and confirm the selected dimensions and hardware requirements before finalizing the opening.

What good pocket-door framing and hardware need to do

A pocket-door frame is not just a track hidden behind drywall. It must stay straight, plumb, and securely supported while the door moves repeatedly. The frame’s split studs or reinforced supports leave space for the slab while helping the wall stay stable.

The track carries the door’s weight. Rollers and hangers let it travel along the track, while guides help control movement at the bottom. Quality hardware should be suited to the door’s weight and thickness, operate smoothly, and provide practical access for adjustment or maintenance. Stops and anti-jump features can help keep the door in its intended path.

Poor alignment has noticeable consequences. A track that is not level, a frame that bows during drywall installation, or a guide that is poorly positioned can cause sticking, rubbing, noise, or uneven gaps. It’s worth taking time to check the operation before closing the wall.

How pocket door installation typically proceeds

The precise sequence varies by home and frame system, but an existing-wall retrofit commonly follows these steps:

1. Measure and select the system. Confirm the slab dimensions, weight, thickness, desired clear opening, wall thickness, and manufacturer’s rough-opening requirements.
2. Inspect the wall. Determine whether it is structural or otherwise restricted, and locate wiring, pipes, ducts, and other concealed services. Get professional advice where needed.
3. Confirm approvals and prepare the site. Check local permit requirements. Protect nearby finishes and plan for dust, debris, and temporary disruption.
4. Open the wall carefully. Remove enough drywall to inspect the full proposed opening and pocket area. Do not cut structural framing or services until their purpose and routing are understood.
5. Reframe and relocate services as required. Install any necessary structural support and reroute interfering services through an approved path. The specific work may require licensed trades.
6. Install and align the pocket frame and track. Follow the selected manufacturer’s instructions. Check that the frame is square and plumb and the track is level and firmly attached.
7. Test before closing the wall. Hang the slab and move it through its full travel. Check for rubbing, binding, unwanted gaps, and clearance at the floor.
8. Finish the wall and trim. Restore required insulation, blocking, fire protection, drywall, and finishes. Recheck the door after the wall is complete.

This is a renovation process with several points where mistakes become hidden behind finished surfaces. If you’re not experienced with structural framing or trade work, have a qualified installer manage the work or coordinate the relevant professionals.

When a retrofit is realistic, and when another door is smarter

A pocket door is a strong candidate when the wall has enough uninterrupted length and depth, the cavity can be kept clear, and any structural or code requirements can be met without disproportionate work. It can be especially effective in compact rooms where the swing of a hinged door conflicts with furniture, circulation, or cabinetry.

A barn-style sliding door is often more practical if the wall cannot be opened or contains utilities that are expensive to relocate. It needs clear wall space beside the doorway and remains visible when closed, so consider the visual effect and the need for privacy. A swing door can be the better choice when there is room for its arc, privacy and a firm seal matter, or the wall retrofit would require extensive structural work.

The right answer is not always the door that disappears into the wall. It’s the door that suits the room and the construction behind it. If a pocket door remains the best fit, explore custom-order interior doors and frames and modern European interior doors as you coordinate the slab, frame, and finish.
