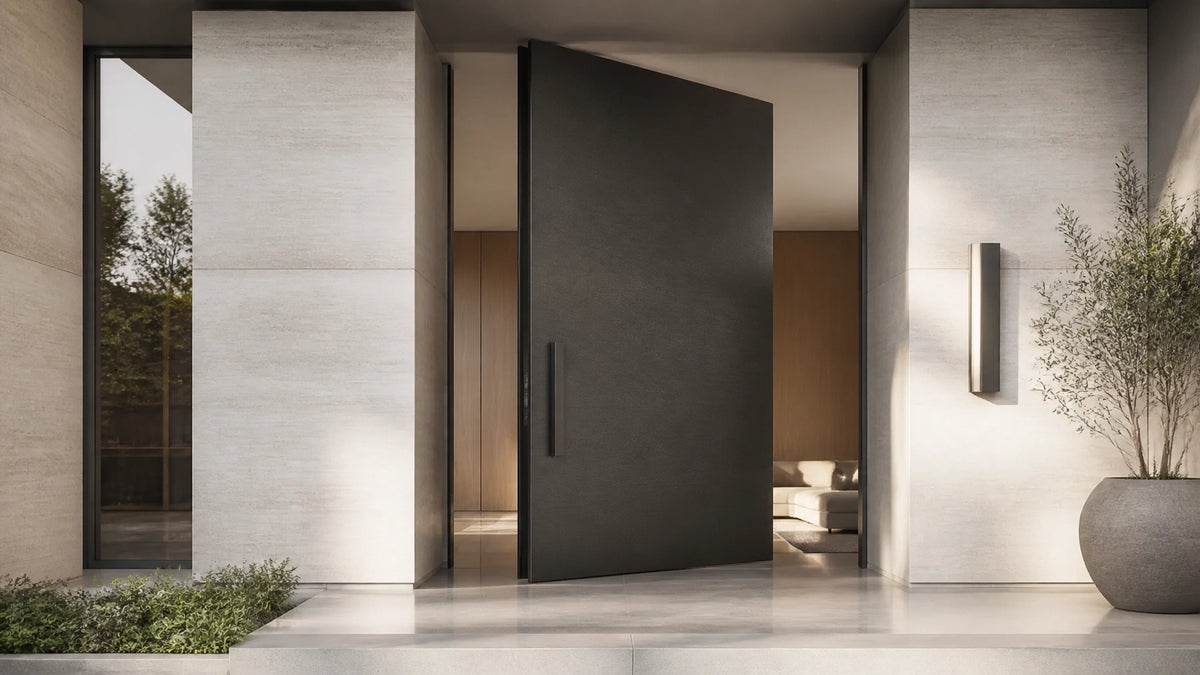

A pivot door creates an immediate architectural statement. Unlike a conventional hinged door, it rotates on a concealed pivot mechanism positioned within or near the door panel rather than swinging from side-mounted hinges. The result is a broader opening, cleaner sightlines, and a more substantial presence at the entry.

But that visual impact raises an important question: How much does a pivot door cost?

For a high-quality residential project in the United States, a modern pivot door may cost approximately $8,000 to $25,000 installed. More straightforward systems can fall below that range, while oversized, heavily glazed, highly customized, or structurally complex entrances can exceed $30,000.

The door itself is only one part of the budget. Size, material, finish, glass, hardware, site conditions, structural preparation, and installation all influence the final price. Understanding these factors helps you compare proposals accurately and decide where to invest.

This guide explains what determines pivot door cost, what is usually included in a quote, and how to plan a grand entrance without compromising on performance or design.

What Is the Typical Pivot Door Cost?

The most useful starting point is to separate the project into three broad budget levels. These figures are planning ranges, not fixed retail prices, because every opening and specification is different.

• Entry-level custom project: approximately $4,000–$8,000 installed

  • More conventional dimensions
  • A simpler material and finish
  • Limited glass or standard glazing
  • Minimal structural modification

• Premium residential pivot door: approximately $8,000–$25,000 installed

  • Oversized or architectural proportions
  • Premium metal, wood, or wrought iron construction
  • Upgraded hardware
  • Custom finish and glazing options
  • Professional installation

• Luxury or highly complex entrance: approximately $25,000–$50,000 or more installed

  • Very large door panels
  • Structural reinforcement
  • Specialty glass
  • Complex finishes or detailing
  • Extensive opening modifications
  • High-performance thermal and weather-sealing requirements

The key point is simple: Do not compare a door-only price with a complete installed project. A complete quote should clarify whether it includes the slab or panel, frame, pivot hardware, lockset, glass, threshold, delivery, installation, and any necessary construction work.

For a design-led entry, browse wrought iron pivot exterior doors to consider how material and construction style influence the overall character of the entrance.

Why Does Door Size Have Such a Major Effect on Price?

A larger door changes nearly every technical requirement. It uses more material, weighs more, requires stronger hardware, and demands greater precision during fabrication and installation.

A standard residential door may be relatively easy to support. An oversized pivot door is different. Its weight is transferred through the pivot system into the floor and header, so the surrounding structure must be capable of handling the load.

Size affects cost in several ways:

• More material: A taller or wider panel requires more metal, wood, glass, or composite construction.
• Heavier hardware: The pivot mechanism must be rated for the completed door weight, not just the panel size.
• Additional engineering: Large openings may require a reinforced header, steel framing, or upgraded floor support.
• More demanding transportation: Oversized doors require careful handling, specialized packaging, and sometimes additional labor at the jobsite.
• Greater alignment sensitivity: A small error becomes more noticeable on a tall, wide panel.

For this reason, it is often more cost-effective to establish the rough opening and intended door proportions early in the design process. Changing the dimensions late in construction can affect framing, finishes, flooring, trim, and exterior cladding.

A grand entrance does not need to be enormous to feel luxurious. Strong proportions and carefully selected materials often create more sophistication than simply increasing the size.

How Do Materials and Finishes Change Pivot Door Cost?

Material selection is one of the most visible pricing decisions. It affects the appearance of the door, but also its weight, durability, maintenance, thermal performance, and fabrication requirements.

Aluminum and steel

Aluminum is valued for its clean lines, lighter weight, and resistance to corrosion. It is often a practical choice for contemporary entrances, especially when paired with expansive glazing or a slim profile.

Steel and wrought iron create a more substantial appearance. They can provide a striking balance of strength and craftsmanship, although their weight and fabrication requirements may increase the cost of the complete system.

Wood and engineered construction

Natural wood brings warmth and tactile depth to an entrance. Premium timber, exotic species, custom stains, and hand-applied finishes will generally increase the budget.

Engineered door construction can provide dimensional stability and consistent performance while allowing the surface to be finished in a wood veneer, paint, or architectural coating. The quality of the core and finish matters. A door should be evaluated as a complete assembly rather than by surface appearance alone.

Finishes

A standard painted or powder-coated finish is usually more economical than a specialized finish. Custom colors, textured coatings, metallic effects, multi-layer stains, and hand-finished surfaces require additional preparation and labor.

When reviewing finish samples, consider the architecture around the door. A matte charcoal finish may emphasize pale stone and warm wood. A textured dark finish can add depth without introducing a strong color. These choices create aesthetic appeal while preserving a timeless palette.

What Role Does Pivot Hardware Play in the Price?

The pivot mechanism is the functional heart of the door. It carries the load, controls the movement, and influences how the panel opens, closes, and aligns with the frame.

A conventional hinge is attached to the side of the door. A pivot system typically uses hardware installed at the top and bottom of the panel, allowing the door to rotate around a vertical axis. This configuration makes large doors possible, but it also requires carefully matched components.

Hardware cost is influenced by:

• Weight capacity: Heavier doors need stronger pivot sets.
• Door dimensions: Taller and wider panels create greater leverage on the hardware.
• Pivot position: A centered pivot creates a different opening experience from an offset pivot placed closer to the jamb.
• Closing control: Soft-close or controlled-closing functions may increase the cost.
• Locking requirements: Entry doors may require more robust security hardware than interior applications.
• Finish and handle style: Long pulls, concealed handles, and premium metal finishes add to the specification.

Do not treat pivot hardware as an afterthought. An attractive door with underspecified hardware may feel difficult to operate, close inconsistently, or require premature adjustment.

Ask your supplier to confirm the hardware’s weight rating, intended use, warranty coverage, adjustment process, and compatibility with the selected door construction.

How Much Does Glass Add to a Pivot Door?

Glass can make a pivot entrance feel lighter and more connected to the landscape. It can also increase the cost considerably, especially when the glass occupies most of the panel.

The price depends on the type, thickness, size, and performance requirements of the glazing.

• Tempered glass is heat-treated for improved safety and strength.
• Laminated glass uses a bonded interlayer that helps hold the glass together if it breaks and can improve acoustic performance.
• Insulated glass uses two or more panes separated by a sealed cavity to improve thermal performance.
• Low-emissivity, or Low-E, glass includes a coating that helps control heat transfer.
• Tinted, textured, patterned, or low-iron glass changes appearance and may carry an additional premium.

Large glazed panels may also require stronger framing and more careful transportation. If the door is exposed to direct sun, wind, or significant temperature changes, performance specifications become especially important.

The right question is not simply, “How much does glass cost?” Ask instead:

1. What level of insulation does the entrance need?
2. Does the glass need enhanced acoustic or security performance?
3. Will solar heat gain affect the foyer?
4. Is the glass specification appropriate for the local climate?
5. Will the frame and seals perform as well as the glass itself?

A glass-heavy door can be beautiful, but the details determine whether it is comfortable and efficient in everyday use.

Why Can Installation Add Thousands to the Budget?

Installation is often the most underestimated part of pivot door cost. Pivot systems require more precision than standard hinged doors, and the opening must be prepared correctly before the door arrives.

Potential installation expenses include:

• Removal and disposal of an existing door
• Widening or raising the opening
• Structural reinforcement at the header
• Floor preparation for the bottom pivot
• Waterproofing and threshold detailing
• Exterior flashing and weather sealing
• Interior drywall, plaster, trim, or paint repair
• Crane, lift, or additional labor for oversized panels
• Final adjustment and commissioning

The installer must confirm that the floor is level, the frame is plumb, and the pivot points are accurately positioned. Even a small deviation can cause the door to rub, drift, or leave inconsistent gaps.

For new construction, coordinate the door with the architect, builder, structural engineer, flooring contractor, and exterior envelope team. For renovation projects, inspect the existing opening before finalizing the door dimensions.

A low installation quote is not always a good value. Ask what preparation, adjustment, sealing, and finish work are included.

Which Performance Features Are Worth Paying For?

A pivot door should look impressive, but it also needs to function as part of the building envelope. The building envelope is the boundary that separates the conditioned interior from the outdoors.

Performance upgrades may include:

• Insulated door cores
• Thermally broken frames
• Double or triple glazing
• Low-E glass
• Multi-point locking
• Compression weather seals
• Insulated thresholds
• Improved water and air resistance

These features may increase the initial price, but they can improve comfort and reduce drafts, noise, and unwanted heat transfer.

The correct level of performance depends on the entrance location. A sheltered interior pivot door has different requirements from an exposed front entry in a cold or storm-prone climate. Your architect, contractor, or door specialist should review local conditions before recommending a specification.

How Can You Control Pivot Door Cost Without Losing the Design?

A carefully managed specification can preserve the architectural effect while keeping the project within budget.

• Keep the dimensions generous but practical rather than oversized without purpose.
• Choose one strong finish instead of combining several expensive surface treatments.
• Use glass selectively to bring in light without paying for a fully glazed panel.
• Select hardware based on the actual door weight and use rather than appearance alone.
• Confirm structural requirements before ordering.
• Compare complete installed quotes, not isolated door prices.
• Request finish and material samples before approving the specification.
• Decide which performance upgrades are essential for your climate and exposure.
• Coordinate delivery, installation, flooring, and trim work to avoid return visits.
• Work with a supplier that can support custom sizing, hardware, and finish decisions.

For a broader range of European-inspired entrance solutions, review the premium residential doors collection.

What Should Be Included in a Pivot Door Quote?

A professional quote should give you enough information to compare options without guessing. Look for a line-by-line description of the complete door assembly.

Your quote should identify:

1. Door construction

   • Material and core
   • Overall thickness
   • Dimensions
   • Exterior or interior application

2. Frame and threshold

   • Frame material
   • Finish
   • Threshold type
   • Weather-sealing details

3. Hardware

   • Pivot mechanism
   • Weight rating
   • Lockset
   • Handle or pull
   • Closing and hold-open functions

4. Glass

   • Type and thickness
   • Safety classification
   • Insulation performance
   • Coatings or specialty treatments

5. Project services

   • Delivery
   • Installation
   • Structural preparation
   • Removal of existing materials
   • Finish repairs
   • Final adjustment

If a quote uses broad language such as “hardware included” or “installation available,” request clarification. The details can materially change the final price.

Conclusion: What Is the Right Budget for Your Pivot Door?

The right pivot door cost depends on the entrance you are creating, not just the door style you prefer. A modestly sized, well-specified system may provide a refined architectural statement without requiring major structural work. A large, custom entrance with premium materials, specialty glass, and reinforced construction will naturally command a higher investment.

As a practical planning figure, many premium residential projects fall between $8,000 and $25,000 installed. Treat that range as an early budgeting tool rather than a guaranteed price. Your final proposal will depend on dimensions, construction, finish, glazing, hardware, site access, and installation conditions.

Start with the fundamentals:

• Establish the opening dimensions.
• Decide whether the door is interior or exterior.
• Select the material and finish direction.
• Determine how much natural light you want.
• Review the hardware and performance requirements.
• Confirm structural and installation responsibilities.

A pivot door is most successful when its visual drama is supported by thoughtful engineering. With the right specification, it can provide a seamless blend of proportion, craftsmanship, light, security, and everyday function, a grand entrance that feels considered rather than excessive.

Frequently Asked Questions About Pivot Door Cost

Q: How much does a pivot door cost installed?

A: A high-quality residential pivot door commonly falls around $8,000–$25,000 installed, while simpler projects may cost less and oversized or structurally complex entrances may exceed $30,000.

Q: Are pivot doors more expensive than regular hinged doors?

A: Usually, yes. Pivot doors require specialized hardware, precise installation, and sometimes structural reinforcement. Their larger proportions and custom finishes can also increase the material and fabrication cost.

Q: What is the biggest factor in pivot door cost?

A: Size and weight are among the most important factors because they affect the amount of material, the pivot hardware capacity, transportation, structural support, and installation requirements.

Q: Does glass make a pivot door more expensive?

A: It can. Large glass areas, insulated glazing, Low-E coatings, laminated safety glass, specialty patterns, and custom sizes may all increase the cost of the complete door system.

Q: Do pivot doors require structural reinforcement?

A: Some do, especially oversized or heavy exterior doors. The floor and header must support the pivot mechanism and door load. A qualified installer or structural professional should evaluate the opening before ordering.

Q: Are pivot doors energy efficient?

A: They can be, when specified with an insulated core, thermally appropriate frame, high-performance glazing, effective weather seals, and a properly installed threshold. Performance depends on the complete assembly.

Q: Can I customize the size and finish of a pivot door?

A: Many premium pivot door systems support customization in dimensions, materials, finishes, hardware, and glazing. Confirm the available options and any related lead-time or engineering requirements before placing an order.

Q: What should I ask before ordering a pivot door?

A: Ask for the complete installed price, door dimensions, weight rating, hardware details, glass specification, structural requirements, lead time, warranty terms, and a clear list of included and excluded work.
