A pivot front door can give your home the kind of entrance usually associated with high-end architectural projects: oversized proportions, clean lines, and a strong connection between the exterior and interior. Unlike a traditional hinged door, a pivot door rotates on a vertical spindle positioned away from the side jamb. That offset movement creates a distinctive opening and allows the door panel to become a major design feature.

The visual impact is impressive. However, a pivot entry door is not automatically the best choice for every home.

You need to consider clear opening width, floor structure, weather exposure, installation tolerances, hardware, maintenance, and total project cost before choosing one. The right door can elevate your home’s aesthetic appeal and improve the feeling of arrival. The wrong specification can create drafts, drainage problems, awkward circulation, or difficult operation.

This guide explains the main pivot front door pros and cons, how to approach sizing, and what to confirm before ordering.

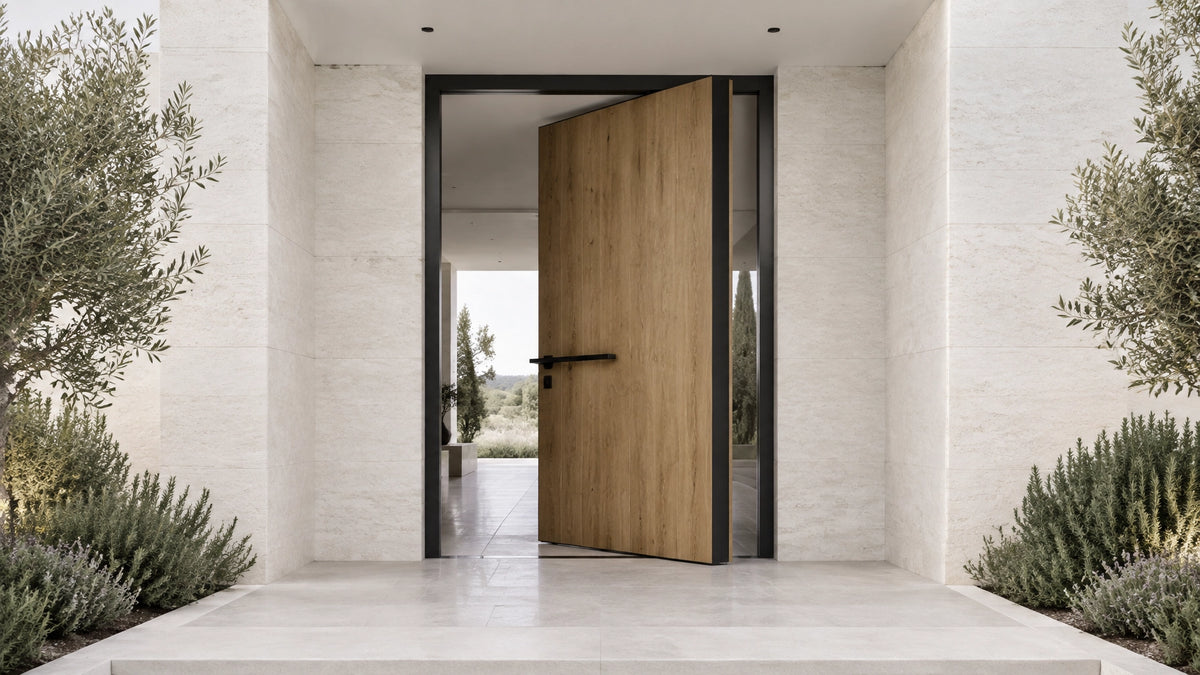

What Is a Pivot Front Door?

A pivot front door is supported by pivot hardware at the top and bottom of the door rather than by conventional side hinges. The pivot point is usually set several inches in from the edge of the panel.

That position changes how the door moves.

When opened, part of the door swings inward or outward while the opposite edge moves in the other direction. The result is a smooth, balanced motion that can support a wider or heavier slab than many standard hinged systems.

Pivot front doors are often used in:

• Contemporary and modern homes with large architectural openings
• Minimalist facades where the door should read as one clean plane
• Wide entryways that need more presence than a standard single door
• Sheltered entrances with a canopy, recessed porch, or deep overhang
• Custom residential projects where size, finish, and hardware are coordinated with the architecture

My City Doors offers customizable wrought iron pivot exterior doors as well as broader exterior door options. The important point is that the door should be specified as part of the entire entry assembly, not treated as an isolated slab.

Why Choose a Pivot Front Door? The Main Advantages

A pivot door earns its place when its architectural benefits support the way you use your home.

1. It creates a strong first impression

The scale and movement of a pivot front door make the entrance feel intentional. A tall slab with a concealed-looking frame can turn an ordinary facade into a composed architectural statement.

This is especially effective when the door aligns with:

a. Floor-to-ceiling windows
b. Large-format stone or plaster panels
c. A covered entry or recessed porch
d. Minimalist exterior lighting
e. A restrained palette of wood, charcoal, glass, and stone

A pivot door does not need excessive ornament to feel luxurious. Its proportions do most of the work.

2. It accommodates larger door panels

Because the weight is distributed through top and bottom pivot hardware, pivot systems can support large panels that may be impractical for ordinary side hinges. This makes them suitable for wide and tall entrances where a standard door would look undersized.

The result can be a more generous sense of arrival and better visual balance across a large facade.

However, “larger” does not mean “unlimited.” The structural capacity of the frame, floor, head condition, pivot hardware, slab construction, and local wind requirements all matter.

3. It offers smooth, balanced movement

A properly installed pivot front door can open with a controlled, fluid motion despite its size. The experience feels substantial without necessarily feeling heavy.

This performance depends on precise alignment. A high-quality pivot mechanism cannot compensate for a weak substrate, inaccurate opening, or poor installation.

4. It can improve the relationship between indoors and outdoors

A large pivot door can visually extend the foyer toward a terrace, courtyard, or landscaped approach. When paired with adjacent glass, it creates a wider field of view and brings more daylight into the entry sequence.

The door becomes part of the architecture rather than simply a barrier in the wall.

5. It supports a clean, highly customized design

Pivot front doors can be coordinated with a range of materials and finishes, including wood, metal, glass, painted surfaces, and textured panels. Hardware can often be selected to blend into the design or provide a deliberate contrast.

For a European-inspired interior, a flush or planar finish can create a calm, seamless appearance. A natural wood surface adds warmth. A matte charcoal or wrought iron finish gives the entrance more graphic definition.

What Are the Disadvantages of Pivot Front Doors?

The disadvantages are not reasons to avoid pivot doors. They are reasons to specify them carefully.

1. Weather sealing can be more demanding

A traditional hinged exterior door often has a familiar compression seal around the perimeter. A pivot door has a different movement pattern and may have more complex conditions at the top, bottom, and pivot side.

That can make airtightness and water management more difficult.

If your entrance is exposed to wind-driven rain, snow, or extreme temperatures, ask about:

• Perimeter weather seals
• Thermal breaks, which reduce heat transfer through metal components
• Threshold design
• Drainage and sill detailing
• Water-management testing
• Recommended exposure limits
• The need for a canopy or recessed installation

A sheltered location is usually more forgiving. A fully exposed entrance requires more careful engineering.

2. The clear opening is smaller than the slab width

This is one of the most important pivot door sizing issues.

Because the pivot point is set back from the edge, the door does not open like a conventional hinged slab. The nominal door width is not the same as the usable walkthrough width.

A large door can still have a surprisingly modest clear opening if the pivot offset and frame dimensions are not accounted for early in the design.

As a planning benchmark, many residential projects aim for approximately 36 inches of clear passage or more, but accessibility requirements and local building codes should determine the final dimension. Always confirm the clear opening with the manufacturer and project professional.

3. The initial cost is usually higher

Pivot front doors often cost more than standard hinged entry doors because they may require:

a. Custom sizing
b. Specialized pivot hardware
c. A reinforced head and floor condition
d. Custom frame and threshold fabrication
e. More detailed weatherproofing
f. Professional installation
g. Additional site preparation

The door price is only one part of the budget. Include demolition, framing, structural reinforcement, finish work, trim, delivery, and installation when comparing options.

A pivot system can be a sound investment when the entrance is a central design feature. It is less compelling when the opening is small or the budget is primarily focused on weather performance and value.

4. It needs more space on both sides of the opening

A pivot front door can reduce swing intrusion in some layouts, but it still needs a carefully planned movement zone. The panel may travel across both the interior and exterior sides of the entry.

Check for conflicts with:

• Furniture and consoles
• Stair railings
• Adjacent walls
• Light switches and thermostats
• Exterior planters
• Walkways and railings
• Vehicles parked close to the entrance
• Children, pets, and high-traffic circulation

Do not evaluate the door only when fully closed. Draw the complete arc of movement.

5. Installation errors are less forgiving

A pivot door relies on accurate alignment between the floor pivot and the head pivot. If the components are not properly aligned, the door can drag, bind, swing unpredictably, or place excessive stress on the hardware.

Professional installation is strongly recommended.

The installer should understand the door manufacturer’s tolerances and coordinate with the framer, architect, general contractor, flooring installer, and waterproofing team.

How Should You Size a Pivot Entry Door?

Sizing should begin with the opening and the desired clear passage, not with a standard door slab dimension.

1. Measure the existing conditions

Before ordering, document:

• Rough opening width and height: the structural opening between framing members
• Finished opening dimensions: the visible opening after wall finishes are installed
• Wall thickness: needed for frame or jamb planning
• Floor elevation: including tile, stone, wood, or other finished flooring
• Head condition: the structure above the door
• Exterior grade and drainage: especially for flush thresholds
• Desired clear opening: the actual space you want to walk through

For a renovation, measure in multiple locations. Existing openings are not always square.

2. Plan the pivot offset

The pivot offset is the distance between the door edge and the vertical pivot axis. A larger offset changes the visual balance and reduces usable passage near the pivot side.

The ideal location depends on the door width, surrounding architecture, hardware, and desired movement. It should be confirmed in the shop drawings rather than assumed from a photograph.

Ask for a drawing that shows:

a. Overall slab width and height
b. Frame dimensions
c. Pivot axis location
d. Clear opening width
e. Swing direction
f. Maximum opening angle
g. Threshold and floor conditions

3. Design for the right proportion

A pivot door generally looks most intentional when the opening, door height, and surrounding wall areas are visually balanced. An oversized slab in a narrow wall can feel forced. A modest slab in a very wide facade may lose the architectural effect that makes pivot doors appealing.

Use the surrounding elevation to guide the proportions.

In many projects, the door is coordinated with adjacent sidelights, windows, cladding joints, or full-height wall panels. The goal is not simply to make the door as large as possible. It is to make the entire entrance feel composed.

What Does Pivot Door Installation Require?

Installation quality has a direct effect on daily performance.

1. Structural support at the top and bottom

The bottom pivot transfers significant load into the floor. The head pivot must also be securely supported and aligned.

Your contractor should verify:

• Floor strength and reinforcement
• Head framing or lintel support
• Subfloor conditions
• Finished floor height
• Frame anchoring points
• Compatibility with radiant heating or concealed services

Do this before the opening is closed or the finished floor is installed.

2. Careful threshold and drainage planning

A low or flush threshold can create a beautiful transition between inside and outside, but it must be detailed correctly. Water should be directed away from the building rather than toward the interior floor.

Exterior entries may require a sloped approach, drainage channel, sill pan, or protected canopy. Your builder should coordinate the threshold with the waterproofing system and exterior paving.

3. Hardware and safety planning

Consider whether the door needs:

• A door closer to control movement
• A hold-open function for daily use
• Soft-close or damping features
• A lockset suited to the door’s weight
• Pinch-point protection
• A child- and pet-conscious swing path

Large panels can move with force in a crosswind. A controlled opening system may be worthwhile even when the door is easy to operate by hand.

Pivot Front Door or Hinged Door: Which Is Better?

The best choice depends on your priorities.

Choose a pivot front door when you want:

1. A dramatic architectural entrance
2. A large or unusually tall panel
3. A modern, minimalist appearance
4. A custom opening with enough floor and wall space
5. A design feature that connects the facade to the interior

Choose a high-quality hinged entry door when you prioritize:

1. Maximum weather sealing
2. A smaller or more conventional opening
3. Lower initial cost
4. Simpler installation
5. Straightforward accessibility and circulation

Neither system is universally superior. The correct decision depends on the architecture, climate, budget, and way your household uses the entrance.

A Practical Checklist Before You Order

Before approving a pivot entry door, confirm the following with your design and installation team:

• What is the rough opening size?
• What is the expected clear walkthrough width?
• Where is the pivot axis located?
• Does the floor need reinforcement?
• Is the head adequately supported?
• Is the entrance sheltered from direct rain?
• How will the threshold manage water?
• What frame and jamb dimensions are available?
• Which hardware controls the door?
• How will the door perform in your local climate?
• Who is responsible for final field measurements?
• Does the quote include the slab, frame, threshold, hardware, and installation?

For a custom project, request final shop drawings before framing begins. This is where the design intent becomes buildable information.

Final Advice: Specify the Whole Entrance, Not Just the Door

Pivot front doors offer genuine design advantages. They can create a refined focal point, support generous proportions, and bring a distinctly European architectural character to a home.

They also require more planning than a standard hinged door.

Start with the clear opening, structure, weather exposure, and movement path. Then select the finish, hardware, and proportions. If the entrance is wide, sheltered, structurally prepared, and central to your design concept, a pivot door can be an exceptional choice.

If your opening is compact or highly exposed, compare it carefully with the performance and simplicity of a hinged entry door. A beautiful entrance must also open smoothly, seal properly, drain safely, and serve your household every day.

Q: Are pivot front doors more expensive than hinged doors?

A: Usually, yes. Custom sizing, specialized pivot hardware, structural preparation, frame fabrication, weatherproofing, and professional installation can make a pivot front door more expensive than a standard hinged entry door.

Q: How wide should a pivot entry door be?

A: The correct width depends on the desired clear opening, pivot offset, frame dimensions, and available circulation space. Do not judge the design by slab width alone. Ask for the manufacturer’s clear-opening measurement and verify local accessibility requirements.

Q: Do pivot doors have a smaller clear opening?

A: They can. Because the pivot axis is set back from the door edge, the usable walkthrough width may be smaller than the nominal slab width. This should be calculated during design development.

Q: Are pivot front doors weatherproof?

A: Quality pivot front doors can be designed for exterior use, but weather sealing is more complex than with many hinged doors. Exposure, seals, threshold design, drainage, installation quality, and the use of a canopy all affect performance.

Q: Can a pivot front door be installed in an existing opening?

A: Sometimes, but it depends on the opening size, floor structure, head support, wall thickness, and available swing space. Retrofitting may require reframing, structural reinforcement, or changes to the finished floor and threshold.

Q: Do pivot doors require professional installation?

A: Professional installation is strongly recommended. The top and bottom pivots must be aligned accurately, and the floor, head, frame, seals, and threshold must work together for safe and reliable operation.

Q: Are pivot doors safe for children and pets?

A: They can be safe when properly specified, but the movement creates potential pinch points and wider swing zones. Consider a closer, hold-open feature, controlled swing range, and careful furniture and circulation planning.

Q: Can pivot front doors be customized?

A: Many custom pivot door systems can be tailored by size, finish, glass, hardware, and frame configuration. My City Doors provides customizable exterior and wrought iron pivot door options, with final specifications confirmed for each project.
