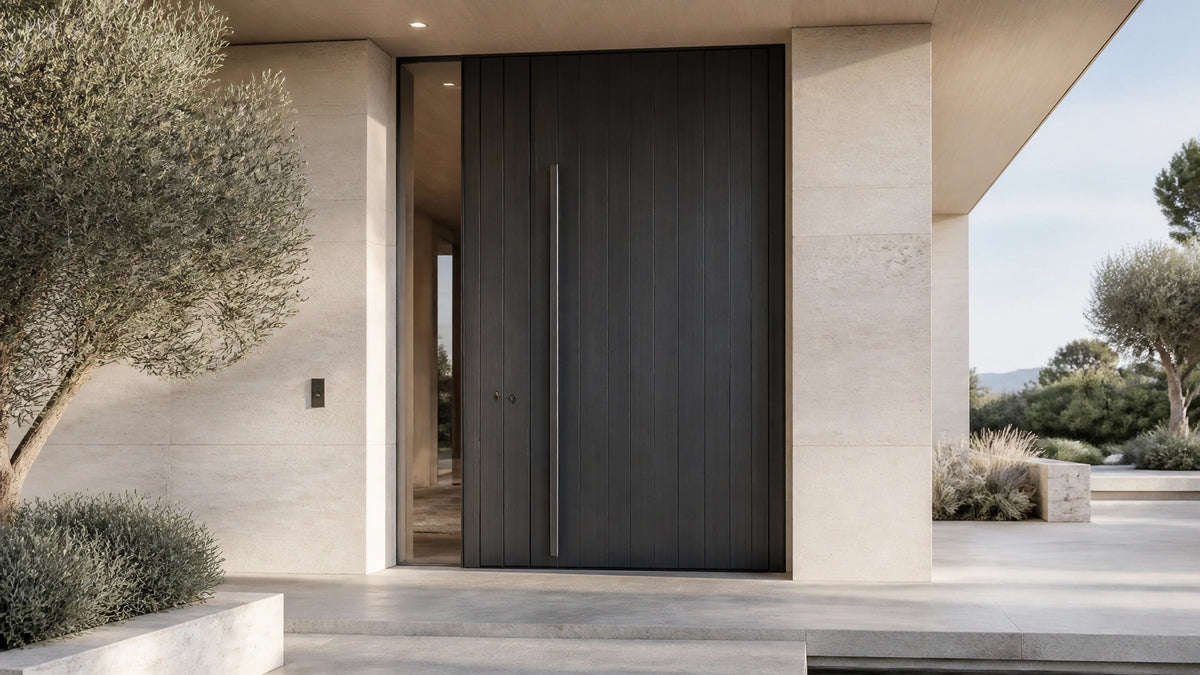

Pivot front doors create an immediate architectural statement. Their large scale, clean lines, and smooth rotation can give a home the presence of a luxury entry without adding decorative clutter. But a pivot door is not simply a larger version of a standard hinged door.

The pivot point is set in from the jamb, which changes the door’s swing path, clear opening, hardware requirements, and weather-sealing strategy. Small planning errors can lead to scraping, difficult operation, drafts, water intrusion, or expensive structural corrections.

Whether you are specifying a new entrance for a client or renovating your own home, use this guide before ordering. These are the seven most common pivot door mistakes, and the practical ways to avoid them.

Mistake 1: Measuring the slab instead of the clear opening

Why this matters: A pivot door can look generously sized while providing less walk-through space than expected.

With a conventional hinged door, most of the slab swings away from the opening. With pivot front doors, the rotation axis is typically offset from the side of the panel. As a result, a portion of the door remains within the opening when the door is fully open.

A common mistake is ordering a door based only on its overall width. The actual passage may be noticeably narrower once the pivot offset is considered.

How to fix it

Before selecting a size:

1. Ask for the finished clear opening. This is the usable passage width after the pivot position, frame, seals, and hardware are accounted for.
2. Measure furniture and appliance routes. Large sofas, cabinets, and appliances may need to pass through the entrance.
3. Consider accessibility requirements. If the entrance must accommodate mobility devices, verify the required clear width with your architect or building professional.
4. Coordinate the pivot position early. A wider slab or a carefully selected offset may improve the opening, but both choices affect clearance and hardware loading.

For a refined entrance, proportion matters. Review the complete opening, not just the door panel, before committing to a design from the entry door collection.

Mistake 2: Forgetting that the door swings on both sides

Why this matters: Pivot front doors occupy space inside and outside the home as they rotate.

Many homeowners plan only for the interior swing. That is not enough. The door may interfere with a foyer table, stair railing, wall art, light switch, porch column, planter, or exterior walkway.

The door also needs clearance at its leading edge and pivot edge. A door can appear to fit when closed but strike an adjacent surface during operation.

How to fix it

Create a simple plan view of the entrance and mark:

• The full interior swing arc
• The exterior swing arc
• The location of furniture and built-ins
• Adjacent walls, sidelites, railings, and columns
• The finished floor height
• Rugs, thresholds, and changes in flooring

Use temporary painter’s tape on the floor to represent the slab and swing area. It is a simple step, but it can reveal a clearance problem before installation begins.

Also decide whether the door should rotate inward, outward, or in both directions if the selected system allows it. Your preferred swing direction should support daily traffic patterns, security, furniture placement, and local code requirements.

Mistake 3: Choosing hardware before calculating door weight

Why this matters: The pivot hardware carries concentrated loads. An underspecified system can sag, scrape, or become difficult to align.

Luxury entry doors are often larger and heavier than interior doors. Wrought iron pivot doors, solid-core doors, oversized metal panels, and glazed systems can place substantial weight on the top and bottom pivot points.

Hardware should never be selected based only on appearance or price. A sleek pivot mechanism is valuable only when its load rating matches the actual door assembly.

How to fix it

Confirm the following with your supplier and installer:

a. The complete door weight, including glass, frame components, locks, handles, and accessories
b. The maximum hardware load rating
c. The approved door dimensions and proportions
d. The intended frequency of use
e. The hardware’s exterior suitability and corrosion resistance

Do not assume that a pivot kit designed for an interior panel can support an exterior entrance. Large exterior doors may require reinforced stiles, internal steel or aluminum support, and hardware engineered for repeated use.

Hardware selection also includes the handle, lock, closer, and doorstop. These components must work together rather than being treated as separate decorative decisions.

Mistake 4: Treating the floor and header as ordinary framing

Why this matters: Pivot doors transfer substantial, concentrated loads into the floor and overhead structure.

A bottom pivot should not be anchored only into tile, thin screed, or an unsupported finish layer. The pivot bearing needs a stable structural base. The head of the frame also needs secure attachment so it remains aligned as the door operates.

This issue is especially important during renovations. A finished floor may hide radiant heating, a shallow subfloor, or a slab that does not provide the depth required for the selected system.

How to fix it

Have the installer or structural professional verify:

• The bottom pivot anchoring point
• The depth and condition of the structural substrate
• Blocking or reinforcement at the header
• The attachment points for the frame
• The final floor build-up, including tile, stone, wood, and underlayment

If reinforcement is required, plan it before drywall, plaster, tile, or stone is installed. Retrofitting support after the entrance is finished is disruptive and often expensive.

Your installer should also confirm that the top and bottom pivot points are aligned on the same vertical axis. Even a small deviation can create uneven reveals, binding, or excessive stress on the hardware.

Mistake 5: Assuming every pivot door is equally weather-tight

Why this matters: The rotating design creates different sealing challenges from a traditional hinged door.

A well-designed exterior pivot system can provide excellent performance, but weather sealing depends on the complete system and the quality of installation. Because the panel rotates within the frame instead of closing against a conventional hinge-side stop, the top, bottom, and pivot edges require careful detailing.

This is not a reason to avoid pivot front doors. It is a reason to specify them correctly.

How to fix it

Ask which weather-management features are included, such as:

• Flexible perimeter gaskets
• Compression seals
• Brush or wind-stop seals
• A properly detailed threshold
• Integrated drainage
• Sealed corners and frame joints
• A sill designed for the local exposure

Location matters as well. A recessed entry or generous roof overhang can reduce direct exposure to wind-driven rain. If the doorway is fully exposed, review the door system’s performance specifications for your climate rather than relying on general assumptions.

Inspect weatherstripping over time. Seals can compress, harden, or become damaged, reducing performance even when the original installation was correct.

Mistake 6: Ignoring the threshold and finished floor height

Why this matters: The threshold affects water control, accessibility, door clearance, and everyday comfort.

A door can be perfectly sized and structurally supported yet still fail to operate correctly if the threshold elevation is wrong. A floor finish installed after the door is set may raise the surface enough for the slab to rub. Conversely, an underestimated floor build-up can leave an excessive gap beneath the door.

Thresholds also need to manage water without creating an awkward step at the entrance.

How to fix it

Before installation, provide the exact specifications for:

1. The finished interior floor
2. The finished exterior surface
3. Tile, stone, wood, or concrete thickness
4. Underlayment and leveling materials
5. The intended threshold profile
6. Drainage direction and exterior slope

The bottom seal should meet the threshold consistently through the door’s closing movement. Test the door after all floor finishes are complete, not only when the frame is first installed.

If a low threshold is important for accessibility, coordinate that requirement with weather protection. The best solution balances a smooth transition with effective drainage and sealing.

Mistake 7: Hiring a general door installer without pivot-door experience

Why this matters: Pivot systems have tighter alignment requirements than many standard hinged doors.

A skilled finish carpenter or door installer may be excellent at conventional doors but unfamiliar with the concentrated loads, offset axis, adjustment points, and sealing details of a large pivot system.

Installation errors may not be obvious on the first day. The door may initially open and close, then begin to drag or shift as the structure settles or the hardware takes repeated loads.

How to fix it

Choose an installer who can demonstrate experience with oversized pivot systems. Before work begins, confirm that the installation plan includes:

• Structural verification
• Accurate axis layout
• Plumb and level checks
• Secure frame fastening
• Hardware adjustment
• Consistent reveals
• Doorstop installation
• Closer and back-check adjustment
• Final weather-seal inspection

Never force a pivot door past its intended opening angle. A properly placed doorstop can prevent damage to the slab, frame, and pivot mechanism.

After installation, open and close the door repeatedly at slow and normal speeds. Listen for scraping, binding, vibration, or slamming. Correct these issues before the project is considered complete.

A practical buying checklist for pivot front doors

Before ordering, ask these questions:

1. What is the finished clear opening, not only the slab width?
2. Has the complete swing path been mapped inside and outside?
3. What is the total door weight with all hardware and glazing?
4. Does the pivot hardware carry that load with an appropriate margin?
5. What structural support is required at the floor and header?
6. How does the threshold manage water and finished floor transitions?
7. Which seals are included, and is the entrance protected from direct exposure?
8. Who will install and adjust the system?
9. Is a doorstop included?
10. What maintenance is recommended for pivots, locks, closers, and seals?

The most successful luxury entry doors are planned as complete assemblies. The slab, frame, pivot hardware, threshold, structure, and finish must be coordinated from the beginning.

Final advice: design the entrance as a system

Pivot front doors offer a distinctive combination of scale, movement, and architectural simplicity. They can frame the entrance beautifully, bring a stronger sense of proportion to a modern facade, and create a memorable transition between indoors and out.

Their performance, however, depends on more than the appearance of the panel. Correct sizing, adequate swing clearance, properly rated hardware, structural support, weather sealing, threshold coordination, and experienced installation all matter.

If you are comparing luxury entry doors or considering wrought iron pivot doors for a renovation or new build, involve your designer, supplier, and installer before the opening is finalized. That early coordination protects the aesthetic appeal of the entrance while ensuring reliable daily operation.

The best pivot door is not merely impressive when closed. It should feel balanced, quiet, secure, and effortless every time you use it.

FAQ

Q: Are pivot front doors less secure than hinged front doors?

A: Not necessarily. Security depends on the door construction, lock system, frame, glass specification, and installation. Ask for an exterior-rated assembly designed for the size and weight of your entrance.

Q: How much clearance does a pivot front door need?

A: The required clearance depends on the slab width, thickness, pivot offset, swing direction, and surrounding architecture. Map the complete swing arc on both sides of the opening before ordering.

Q: Can a pivot door be used as an exterior front door?

A: Yes, but the system must be designed for exterior conditions. Review the threshold, seals, drainage, hardware rating, and exposure of the entrance, especially in coastal or high-wind locations.

Q: Do wrought iron pivot doors require additional structural support?

A: Heavy wrought iron or metal doors may require reinforced floor and header connections, depending on their dimensions and construction. The installer should verify the actual door weight and anchoring requirements before installation.

Q: Why is my pivot door scraping the floor?

A: Scraping may result from incorrect floor-height planning, an unlevel threshold, structural movement, or misaligned pivot hardware. Stop using force and have a qualified installer inspect the axis, clearances, and supports.

Q: Does a pivot door need a doorstop?

A: A doorstop is strongly recommended when the system has a defined maximum opening angle. It prevents overextension that can damage the pivot hardware, frame, walls, or adjacent finishes.

Q: How do I choose the right hardware for a large pivot door?

A: Start with the complete door weight and dimensions, then compare them with the pivot hardware’s documented load rating. Include the weight of glass, reinforcement, locks, handles, and other attached components.
