Barn doors are often chosen for their clean lines and space-saving operation, but the hardware is what determines whether the finished installation feels refined or improvised. The track, rollers, stops, guides, and finish all contribute to the door’s performance and visual character.

When you specify barn door hardware, begin with function. Then coordinate the details with the architecture.

A well-planned system should:

1. Support the door’s weight safely.
2. Allow smooth, controlled movement.
3. Provide enough clearance for the opening and surrounding trim.
4. Coordinate with your other architectural hardware.
5. Suit the privacy and performance needs of the room.

This guide explains the main types of barn door hardware, how designers choose track systems, which finishes work best, and what to include in a professional specification.

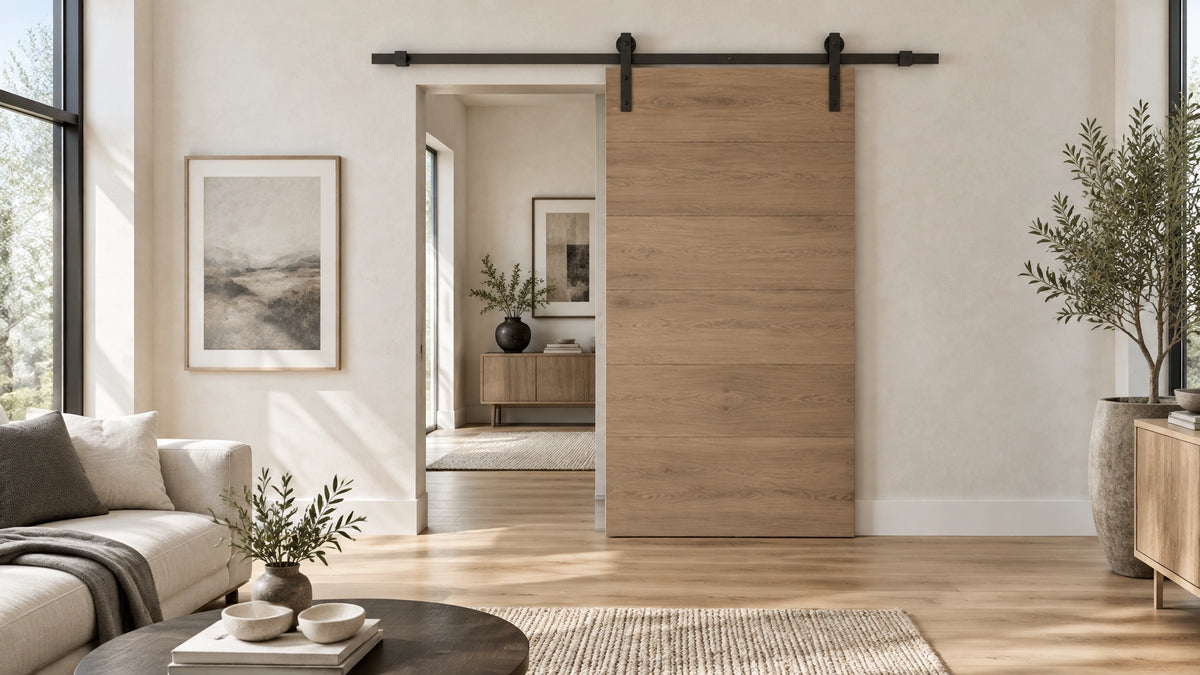

What Is Barn Door Hardware?

Barn door hardware is the mechanical system that allows a door slab to slide horizontally across a wall. Unlike a hinged door, it does not swing into the room. That makes it useful where floor space is limited or where you want a wider, more flexible transition between rooms.

The system generally includes:

• Track: The horizontal rail mounted above the opening.
• Hangers or rollers: The components attached to the door that travel along the track.
• Stops: End pieces that control how far the door can move.
• Floor guide: A small guide near the floor that prevents the door from swinging.
• Pull or handle: The operating hardware mounted to the face of the door.
• Mounting brackets: Supports that connect the track to the wall or structural backing.

The door and hardware must be considered together. A heavy solid-core door requires a different level of support than a lightweight decorative panel.

Which Barn Door Track Should You Choose?

The right track configuration depends on the opening width, available wall space, and the look you want to create.

1. Standard single-door track

A standard track carries one door that slides to one side of the opening. It is the most common arrangement for bedrooms, closets, bathrooms, offices, and smaller room transitions.

This configuration works best when:

a. You have clear wall space on one side of the opening.

b. The door can slide far enough to expose the opening.

c. The wall can support the track and the weight of the door.

A single door should usually extend beyond the opening on all covered sides. This helps reduce visible gaps and creates a more finished appearance.

2. Double-door track

Double barn doors use two panels that slide away from the center or meet at the center. They are effective for wide openings and create a symmetrical architectural statement.

Designers often use double doors for:

• Home offices
• Dining rooms
• Primary bedroom entries
• Large closets
• Flexible living spaces

The track must be sized for the combined movement of both panels. You also need enough wall space on both sides of the opening for the doors to clear it fully.

3. Bypass track

A bypass system uses two parallel tracks, allowing one door to slide in front of the other. This is useful when there is not enough wall space beside the opening for two doors to sit next to each other.

Bypass barn doors are particularly practical for:

a. Wide closets with limited side clearance.

b. Pantries or utility areas.

c. Home offices where the opening needs to be closed without requiring a large wall run.

Because the doors overlap, a bypass arrangement does not provide the same broad, unobstructed opening as two doors that slide in opposite directions. That tradeoff should be discussed early in the design process.

How Long Should a Barn Door Track Be?

A common starting point is to make the track approximately twice the width of the door. This allows the panel to travel far enough to clear the opening.

For example:

• A 30-inch door may require a track close to 60 inches long.
• A 36-inch door may require a track close to 72 inches long.
• A 42-inch door may require a track close to 84 inches long.

This is a planning guideline, not a substitute for the manufacturer’s installation requirements. The final length depends on the door width, desired overlap, wall conditions, and whether the system is single, double, or bypass.

Before ordering, confirm these measurements:

1. Finished opening width
2. Door slab width and height
3. Required overlap beyond the opening
4. Available wall space beside the opening
5. Headroom above the opening
6. Location of studs or structural backing

You also need enough vertical clearance above the opening for the track, hangers, and door. The exact requirement varies by hardware design, so do not assume that a standard door height will fit beneath an existing ceiling or crown molding.

What Components Should Designers Include in the Specification?

A complete barn door hardware specification should describe more than the finish. It should identify the components that affect performance and installation.

Track and mounting

Specify:

• Track type: Standard, double, or bypass
• Track profile: Flat, round, or covered
• Track length: Based on the final door size and travel
• Mounting method: Wall-mounted with appropriate structural backing
• Bracket spacing: Coordinated with studs or engineered blocking

The track must be securely anchored. Drywall alone is not adequate for a heavy sliding door system.

Hangers and rollers

Hangers connect the door to the track. Exposed face-mount hangers create the recognizable barn door appearance, while more discreet top-mounted systems can produce a cleaner elevation.

Consider:

a. Door weight: The hardware rating must exceed the finished door weight.

b. Frequency of use: A frequently operated office or bathroom door needs dependable, smooth-running components.

c. Visual impact: Large exposed hangers become part of the design, not merely a functional detail.

Rollers should move smoothly without excessive side-to-side play. A quality floor guide also helps keep the door aligned as it opens and closes.

Stops and anti-jump protection

Stops control the door’s travel at the ends of the track. They should be adjustable when possible so the opening and closing positions can be fine-tuned.

Anti-jump devices help prevent the door from lifting off the track during use. They are an important safety feature, particularly in homes with children, pets, or high-traffic spaces.

Pulls and handles

A sliding door typically uses a pull handle rather than a traditional hinged-door lever. The pull should be positioned so it is comfortable to operate without striking the wall or adjacent trim.

Choose the pull based on:

• Door thickness
• Hand clearance
• Room-side and hallway-side operation
• Coordination with nearby cabinet, plumbing, and lighting hardware

Which Finish Is Best for Barn Door Hardware?

The finish should reinforce the room’s overall metal palette. It does not need to match every detail exactly, but it should feel intentional.

Matte black

Matte black is a strong choice for contemporary, industrial, modern farmhouse, and minimalist interiors. It creates crisp contrast against white, cream, pale gray, and natural wood doors.

It is also visually prominent. Choose it when you want the track and hangers to become part of the design statement.

Brushed nickel or brushed stainless

Brushed metal finishes offer a quieter, more understated appearance. They work well with contemporary kitchens, stainless appliances, light oak, gray cabinetry, and cool-toned interiors.

The brushed texture is practical because it generally disguises fingerprints and minor surface marks better than a highly polished finish.

Bronze and warm metallic finishes

Bronze tones add depth and warmth to traditional, transitional, Mediterranean, and richly detailed interiors. They pair especially well with walnut, smoked oak, warm plaster, leather, and natural stone.

Use bronze when the hardware should blend with the room’s earthier material palette rather than create sharp contrast.

White or coordinated painted finishes

A white or wall-matched track can reduce the visual weight of the hardware. This is useful in minimalist rooms where the door should appear quiet and integrated.

The finish must be durable and appropriate for the expected use. A painted or powder-coated surface should be specified clearly, including the intended sheen.

Should Hardware Match the Door or the Room?

The best answer is usually both. The door establishes the material story, while the hardware connects the door to the wider room.

For example:

• A natural oak door can support black, bronze, or brushed metal hardware.
• A white door can take contrasting black hardware or a quieter brushed finish.
• A gray door can work with black, stainless, bronze, or coordinated gray details.
• A glass-panel door often benefits from hardware that echoes nearby window frames or cabinet pulls.

Avoid selecting a finish in isolation. Compare it with faucets, lighting, cabinet pulls, hinges, window frames, and furniture accents.

What Privacy Limitations Should You Consider?

Barn doors are attractive and efficient, but they do not seal like a typical hinged door. Because the panel sits in front of the opening rather than inside a frame, small gaps can remain around the sides and top.

That means they may not be ideal when you need:

• Strong sound control
• A complete visual seal
• Light blocking
• Odor control
• A tight bathroom or bedroom closure

For a powder room, bedroom, or home office, consider the door’s overlap, panel thickness, and any available privacy hardware. If acoustic separation is a priority, compare a barn door with a hinged, pocket, or concealed-frame solution before finalizing the design.

How Do You Create a Professional Barn Door Hardware Spec?

A clear specification reduces substitutions and installation surprises. Include the following information:

1. Door type and dimensions
2. Opening width and height
3. Track configuration
4. Track length
5. Hardware weight rating
6. Mounting and structural backing requirements
7. Hanger style
8. Floor guide and stops
9. Pull handle style
10. Material, finish, and sheen
11. Privacy and clearance expectations

For a project with unusual dimensions, wide openings, or a highly coordinated interior, a custom-order door system may be the better starting point. You can review customizable interior door and frame options through the custom-order interior doors collection.

The Designer’s Final Checklist

Before ordering barn door hardware, confirm:

• The door can cover the opening with the required overlap.
• The wall has enough space for the door to travel.
• The track is long enough for the desired opening.
• Structural backing is available behind the mounting points.
• The hardware weight rating exceeds the completed door weight.
• The floor guide and stops are included.
• The track finish coordinates with the room’s other metals.
• The door provides the level of privacy the room requires.
• The hardware dimensions work with trim, baseboards, and ceiling details.

Barn doors should look effortless when finished. That usually happens because the details were carefully resolved before installation.

FAQ: Barn Door Hardware

Q: What is included in barn door hardware?

A: A typical system includes a track, hangers or rollers, mounting brackets, stops, and a floor guide. Pull handles, anti-jump devices, and soft-close components may be included or specified separately, so confirm the exact contents before ordering.

Q: How long should a barn door track be?

A: A common planning rule is approximately twice the width of the door. The final length depends on the required overlap, available wall space, door configuration, and manufacturer requirements.

Q: Can barn door hardware be installed on drywall?

A: Heavy barn door hardware should not rely on drywall alone. The track needs secure attachment to wall studs or properly engineered structural blocking that can support the completed door and its movement.

Q: Is matte black the best finish for barn door hardware?

A: Matte black is versatile and visually distinctive, but it is not the only suitable option. Brushed nickel, stainless, bronze, white, and other coordinated finishes may be better depending on the room’s materials, maintenance needs, and design direction.

Q: Are barn doors suitable for bathrooms?

A: Barn doors can work well for bathrooms when space saving and visual style are priorities. However, they typically leave more gaps than hinged doors, so they may provide less privacy, sound control, and light blocking.

Q: What is the difference between a standard and bypass barn door track?

A: A standard track carries one door or two doors moving on the same plane. A bypass system uses parallel tracks, allowing one door to slide in front of the other when side wall space is limited.

Q: How do I choose between exposed and concealed barn door hardware?

A: Choose exposed hardware when you want the track and hangers to create an architectural feature. Choose a more concealed or visually reduced system when the door surface and surrounding architecture should remain the focus.
