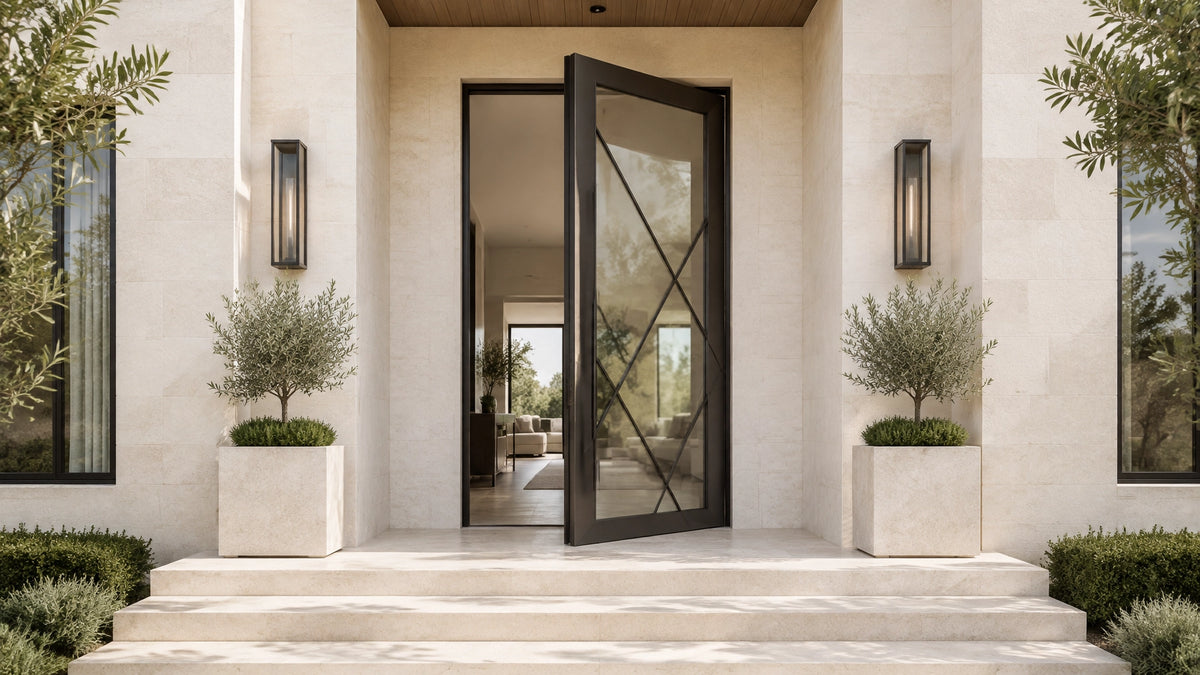

A wrought iron pivot entry door makes a strong architectural statement. Its iron detailing adds texture and character, while the pivot action allows a large door leaf to swing around a vertical point rather than traditional side hinges. The result can feel substantial and elegant, but ordering one involves more than choosing a finish and measuring the opening.

The door, pivot hardware, threshold, weather seals, lock, glazing, and surrounding structure need to work as a coordinated system. If one element is overlooked, the door may not operate smoothly, seal well, or meet local requirements. Use this guide to plan the details before fabrication and installation.

You can browse the wrought iron pivot exterior door collection and compare it with our wider range of exterior doors. Options and specifications vary by design, so confirm the details for the exact door you are considering.

What makes a pivot entry door different?

The main difference is how the door is supported and how it moves. A conventional hinged door swings from hinges fixed along one side of the frame. A pivot door turns on hardware fitted near the top and bottom of the leaf, with the pivot point set in from the edge.

That offset can make a large door feel graceful in use and create a wider, more sculptural entrance. It also changes the opening geometry. The leaf sweeps through a larger arc, and the pivot location affects both the clear passage and the space needed on either side.

Pivot doors are not automatically better for every entry. Their appeal is strongest when the opening, interior layout, weather exposure, and chosen hardware suit the design.

How should you choose the door size and pivot position?

The right size is the one that fits the architecture and works safely in the finished space, not simply the largest leaf that can be made.

Before you order, ask your contractor or door professional to confirm the rough opening, which is the framed opening before the door assembly is installed. Also confirm the planned door dimensions and the clear opening, meaning the usable passage with the door open. These are not interchangeable measurements.

A shop drawing should show the door leaf, frame, pivot location, swing direction, threshold, hardware, and expected clear passage. Review it against the actual site conditions.

Pay particular attention to:

• Door swing and clearance: Check that the leaf will not strike walls, trim, lighting, railings, furniture, or nearby doors as it opens.
• Pivot position: A pivot set closer to the edge may preserve more passage width; a more central position can create a distinctive balanced look but may reduce usable clearance.
• Floor and ceiling conditions: The pivot system needs sound support at both ends. Confirm whether floor construction, underfloor heating, or a finished ceiling affects hardware placement.
• Finished floor height: Tile, stone, wood, and transition strips can change the gap beneath the door. Decide these details before the pivot and threshold are installed.

Do not rely on a rough visual estimate. Have the installer field-measure the opening and verify the final dimensions against approved drawings before fabrication begins.

What should you know about pivot hardware?

Pivot hardware is selected for the finished door, not just its appearance. The hardware must suit the door’s weight, width, thickness, pivot placement, and intended movement. A wide leaf can place greater forces on the pivot than a narrower door of the same weight, so a weight rating alone may not tell the whole story.

Ask the supplier or door professional to identify the proposed pivot system and verify it for the actual design. Clarify whether the door is intended to swing in one direction or both, whether it should close by itself, and whether it will have hold-open positions. These features depend on the selected system; they should not be assumed.

Also ask what is included. A complete hardware plan may involve top and bottom pivot components, floor plates, a closer or damping function, stops, and the appropriate lock and strike. The installer needs to know exactly what is being supplied and how the floor or frame must be prepared.

For an overview of exterior pivot-door details and hardware considerations, see this manufacturer guide to exterior pivot doors. Treat its technical specifications as guidance about that manufacturer’s systems, not as a specification for every door.

How do threshold and weather seals affect performance?

A front door is part of the home’s exterior envelope. The threshold, seals, frame, and installation details help limit drafts and water entry, so they deserve early attention, especially for a large pivot leaf.

Ask how the proposed design manages water at the sill and where water will drain. A low or flush threshold can look clean, but it must still work with the floor pivot, bottom seal, and exterior drainage. The solution should be designed for your climate and site exposure rather than chosen for appearance alone.

Confirm that the sealing approach is made for the pivot geometry. A pivot door’s gaps and turning edge differ from those of a typical hinged door. A compatible bottom seal, weatherstripping, and frame detail should be specified together. The manufacturer’s guide notes that exterior pivot installations may use pivot-compatible drop seals and recessed floor plates; the right arrangement depends on the door system and sill.

Before fabrication, ask:

• What sealing is included at the sides, head, and bottom?
• How does the sill direct water away from the interior?
• Is the entry sheltered or exposed to wind-driven rain?
• What performance information or warranty applies to this exact configuration?

Do not assume that a visually substantial iron door is weather-tight by default. Performance depends on the full assembly and careful installation.

Which glass, finish, and iron details should you select?

The door’s finish and glazing influence both its appearance and its everyday use. Wrought iron can range from restrained linear patterns to more decorative scrollwork. Consider the style of the facade, nearby windows, interior finishes, and the amount of daylight or privacy you want.

For glazing, ask what glass is offered for the design and confirm whether it is suitable for an exterior entry. Depending on the configuration, choices may include clearer or more private glass. Safety-glazing rules can apply to doors and nearby glass; requirements vary by location and installation. Confirm the correct type with your supplier and local building professional.

For the finish, clarify the coating and care instructions, along with the warranty. A protective finish helps guard the iron, but chips and scratches may need attention. If the home is near the coast or exposed to frequent moisture, ask whether the proposed finish is appropriate for that environment and how to maintain it.

A useful selection checklist includes:

• Iron pattern: Decide whether you want a simple, contemporary grille or a more traditional ornamental look.
• Glass and privacy: Balance daylight, views, and privacy, and verify safety-glazing requirements.
• Finish color and sheen: Coordinate the door with exterior metals, lighting, and hardware.
• Handle and lock appearance: Confirm the style, finish, and placement before the door is made.
• Maintenance: Request cleaning guidance and a compatible touch-up process in writing.

What should you confirm about security and building requirements?

A secure entrance is a complete assembly, not simply a strong-looking door or a heavy pivot. The leaf, frame, locks, glass, anchoring, and pivot hardware all contribute. Ask how the design is secured against forced entry and whether the complete door assembly has relevant test information or ratings. Do not assume that a hardware rating applies to the entire entrance.

Plan the lock at the same time as the door and pivot. Confirm that the lock is compatible with the pivot movement and that the strike and frame are prepared for it. If you want electronic access, ask whether wiring and power requirements can be integrated cleanly into the design.

Code is another early checkpoint. Under the 2021 International Residential Code, the required exterior egress door for a dwelling is described as side-hinged and must provide specified clear dimensions. Since a pivot door does not operate like a conventional side-hinged door, do not assume it will qualify as the home’s required egress door. Confirm the adopted code and interpretation with your local building department or project professional before ordering. A separate compliant door may be necessary, depending on the project and jurisdiction.

Also verify the required landing, threshold conditions, door swing, and any accessibility or energy requirements that apply to your home. Local amendments matter.

Who should install a wrought iron pivot door?

Choose an installer with experience in large exterior doors, pivot systems, and water management. The opening must be square, plumb, level, and strong enough to support the door and hardware. An attractive finish cannot correct a poorly prepared opening.

Coordinate the work before the door arrives. The installer should know how the floor plate and threshold will be set, how flashing and drainage will be handled, and when flooring and trim will be completed. Protect the pivot components from construction debris, and make sure the system remains accessible for adjustment or service as designed.

After installation, test the door through its full swing. Confirm that it moves smoothly, clears surrounding surfaces, latches and locks correctly, and seals as intended. Review care instructions and keep the final drawings and hardware information for future maintenance.

What should you have in writing before you order?

A clear written specification reduces the chance of mismatched expectations between supplier, installer, and homeowner. Before approving fabrication, confirm:

• Measurements: Rough opening, door size, frame size, clear passage, and pivot location.
• Operation: Swing direction, opening range, closing behavior, and any hold-open function.
• Hardware: Pivot system, floor and top components, lock, handle, and stops.
• Exterior details: Threshold, water drainage, weather seals, and flashing responsibility.
• Appearance: Iron pattern, finish, glass selection, and hardware finish.
• Project coordination: Who field-measures, who installs, and who is responsible for code and permit confirmation.
• Warranty and care: Coverage, maintenance instructions, and available touch-up materials.

A wrought iron pivot entry door can bring sculptural presence and lasting character to a home when its design and technical details are resolved together. Take time to confirm measurements, swing, hardware, sealing, glazing, security, and local code before you commit. The best result is not only striking from the street. It should also operate smoothly and perform reliably every day.
